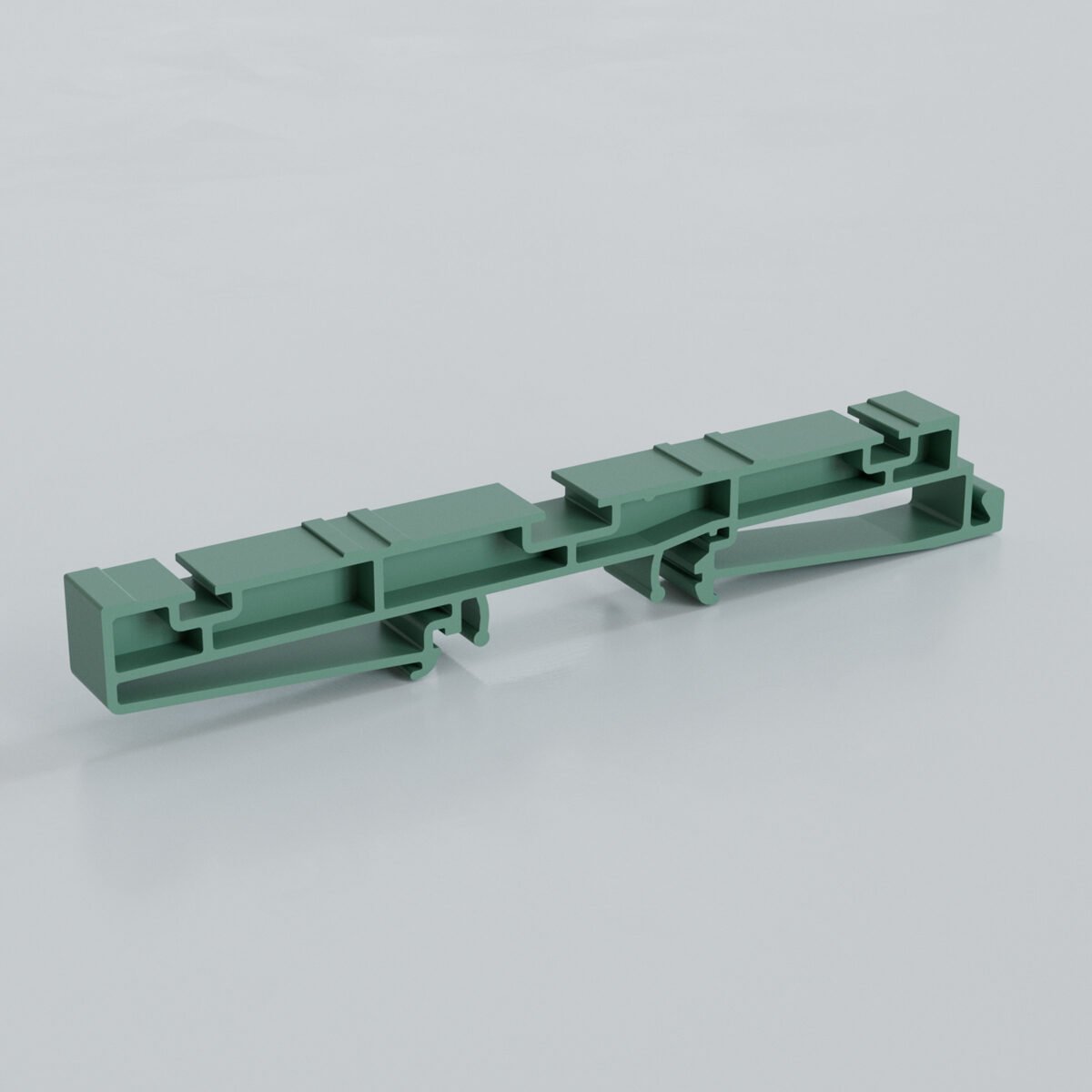

100mm DIN Rail PCB Holder-Foot
PCB card slot standSuitable PCB width: 100mmMounting type: 35mm DIN rail
- DIN Rail PCB Holders are designed to mount printed circuit boards safely and firmly onto 35mm DIN rails.
- The durable holder profiles provide a stable grip, and the snap-on feet allow fast, tool-free installation.
- Simply provide your PCB dimensions, and we can manufacture a customized PCB holder perfectly tailored to your application.
Color options
Green
Stock color
Green
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Insulation material | Polyamide (PA6) |
| Flammability class per UL94 | V0 |
| Mounting type | 35mm DIN rail |
| Screw | Ø 3.05 deep groove plastic screw |
| Suitable PCB width | 100mm |
| Package quantity | 50 |
| Production code | KYS PA/100 |
| Order code | 51.725 |
| Customs tariff no. | 3908.10.00.00.11 |
| Country of Origin | Türkiye |
| File Name | Size | File Type |
|---|---|---|
| 100mm DIN Rail PCB Holder-Foot.x_t | 396KB | X_T |
| 100mm DIN Rail PCB Holder-Foot.STEP | 877KB | STP |
| 100mm DIN Rail PCB Holder-Foot.dxf | 145KB | DXF |
| 100mm DIN Rail PCB Holder-Foot.SLDPRT | 342KB | SPT |
