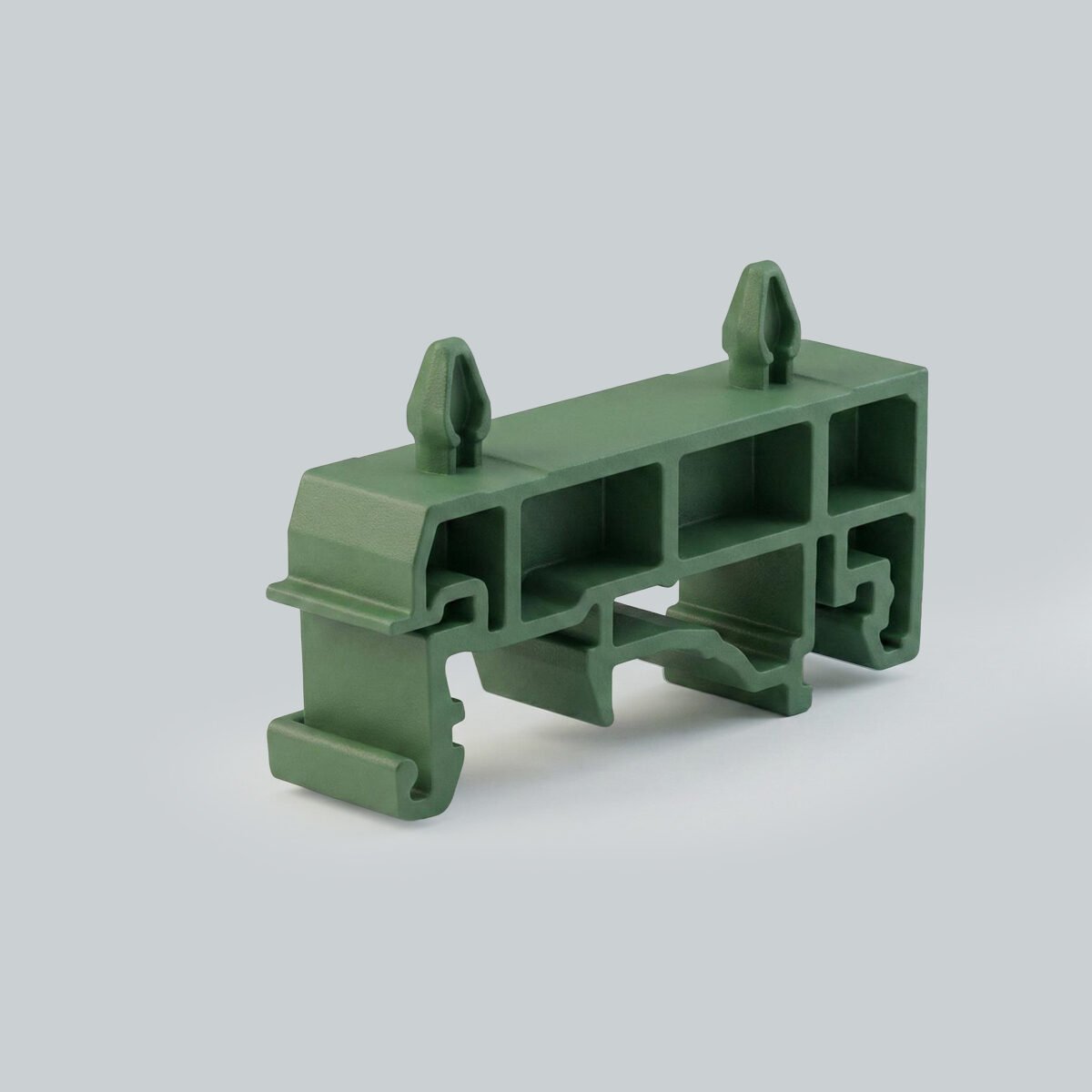

Snap-In DIN Rail Mounting Bracket
DIN Rail Mounting Brackets, are designed to securely mount printed circuit boards onto 35mm DIN rails while ensuring reliable insulation at the board base.
DIN rail distans without screwsMounting type for easy and flexible attachment to the rail: 35mm DIN rail
- Designed to securely mount the PCB and ensure healthy isolation of the board base.
Green
Orange
Black
Gray
Red
Green
Orange
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Insulation material | Polyamide (PA6) |
| Flammability class per UL94 | V0 |
| Mounting type | 35mm DIN rail |
| Screw | Ø 4mm sheet metal screw |
| Package quantity | 100 |
| Production code | DISRD/0 |
| Order code | 60.340 - 61.340 - 62.340 - 63.340 - 64.340 - 65.340 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Türkiye |
| File Name | Size | File Type |
|---|---|---|
| screwless-ray-distans.xt | 284.3KB | X_T |
| screwless-ray-distance.step | 624.46KB | STP |
| screwless-ray-distans.dxf | 319.38KB | DXF |
| No combined products available for this item. |
Please select the information you want in the document.
Benzer Ürünler
Similar Products

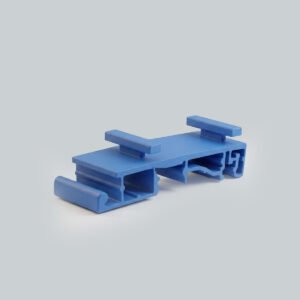

DIN Rail Mounting Bracket for Heat Sink
KarşılaştırAdd to ListDIN Rail Mounting Brackets, are designed to securely mount printed circuit boards onto 35mm DIN rails while ensuring reliable insulation at the board base.
DIN rail distans without screwsMounting type for easy and flexible attachment to the rail: 35mm DIN rail
- Designed to mount the cooler securely.

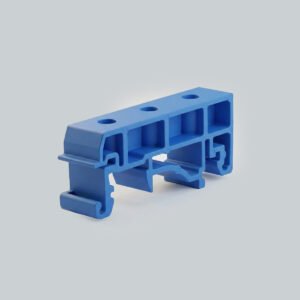

Color optionsBlue Green Orange Black Gray RedStock colorBlue Green OrangeScrew-Type DIN Rail Mounting Bracket
