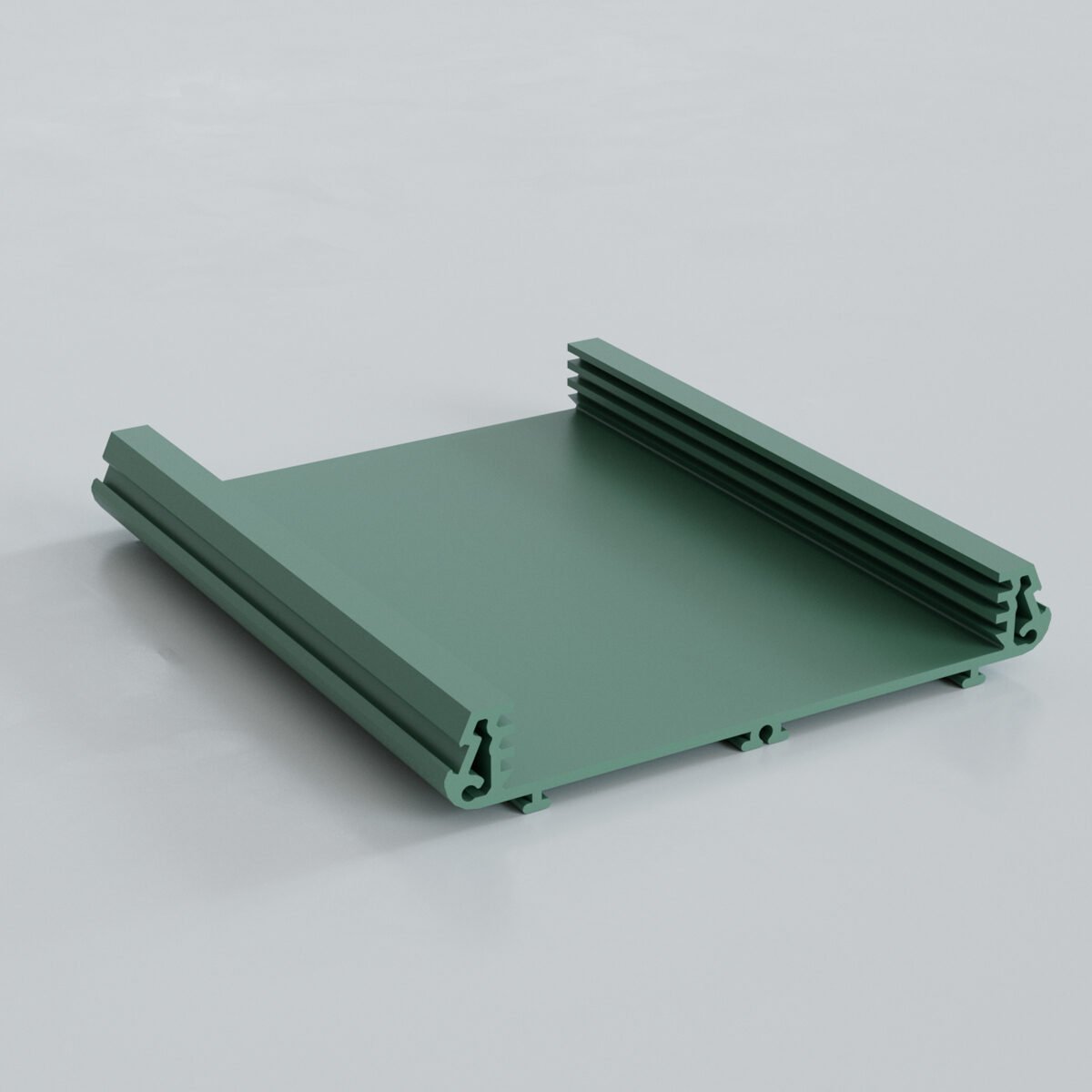

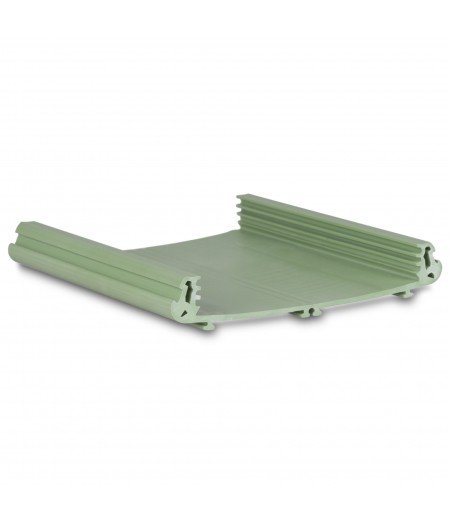

100mm DIN Rail PCB Holder-Profile 2m
PCB card slotSuitable PCB width: 100mmMounting type: 35mm DIN railProfile length: 2 meters
Color options
Green
Stock color
Green
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Insulation material | Polyamide (PA6) |
| Flammability class per UL94 | V0 |
| Mounting type | 35mm DIN rail |
| Screw | Ø 3.05 deep groove plastic screw |
| Suitable PCB width | 100mm |
| Package quantity | 20 |
| Production code | KYS PP/100-2 |
| Order code | 51.675 |
| Customs tariff no. | 3908.10.00.00.11 |
| Country of Origin | Turkey |
| File Name | Size | File Type |
|---|---|---|
| CARD SLOT SERIES - 100 MM PROFILE - PROFILE 2 MT.x_t | 170KB | X_T |
| CARD SLOT SERIES - 100 MM PROFILE - PROFILE 2 MT.STEP | 391KB | STP |
| CARD SLOT SERIES - 100 MM PROFILE - PROFILE 1 MT - 2 MT.dxf | 192KB | DXF |
| 100mm_profil_2meter-TDS-EN.pdf | 790KB | |
| 100mm_profil_2meter-TDS-TR.pdf | 790KB |
| No combined products available for this item. |
Please select the information you want in the document.
