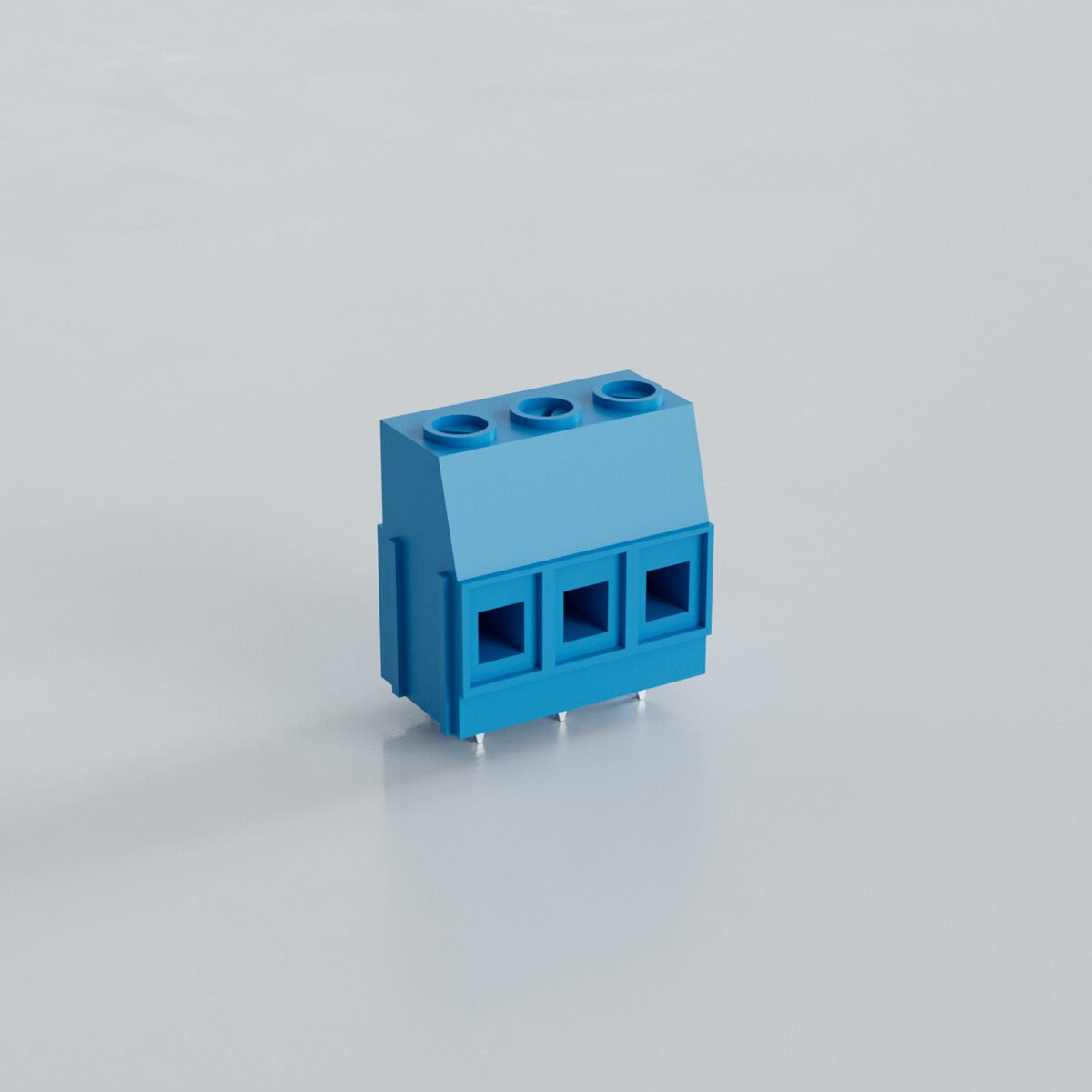

10.16×10.16mm Modular PCB Terminal Block – 3 Pins
Modular PCB terminal block with screw connection with elevator mechanism3 polesMax. conductor cross section: 10mm²- 8AWGPin pitch: 10,16mmRated voltage: 690VRated current: 57A
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin range | 10.16mm |
| Pollution degree | 2 |
| Nominal voltage | 690V |
| Rated impulse voltage | 6kV |
| Rated current | 57 A |
| Connection directions | 90° |
| Cable stripping length | 7mm |
| Solid conductor | 0.25 … 10mm² / 23 … 8 AWG |
| Fine-stranded conductor | 0.25 … 10mm² / 23 … 8 AWG |
| Fine-stranded conductor with ferule | 0.25 … 6mm² /23 … 10 AWG |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Pin dimensions | 1x1mm |
| Drilled pin hole diameter with tolerance | 1.6mm |
| Screw | M4 |
| Recommended max. torque | 1.2Nm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
1-6 pins
| Package quantity | 25 |
| Production code | MBDK 10.16-3 |
| Order code | 20.595 - 21.595 - 22.595 - 23.595 - 24.595 - 25.595 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Turkey |
| File Name | Size | File Type |
|---|---|---|
| 10-16-mbdk-3.dxf | 179.25KB | DXF |
| 10-16-mbdk-3.xt | 201.16KB | X_T |
| 10-16-mbdk-3.step | 385.32KB | STP |
