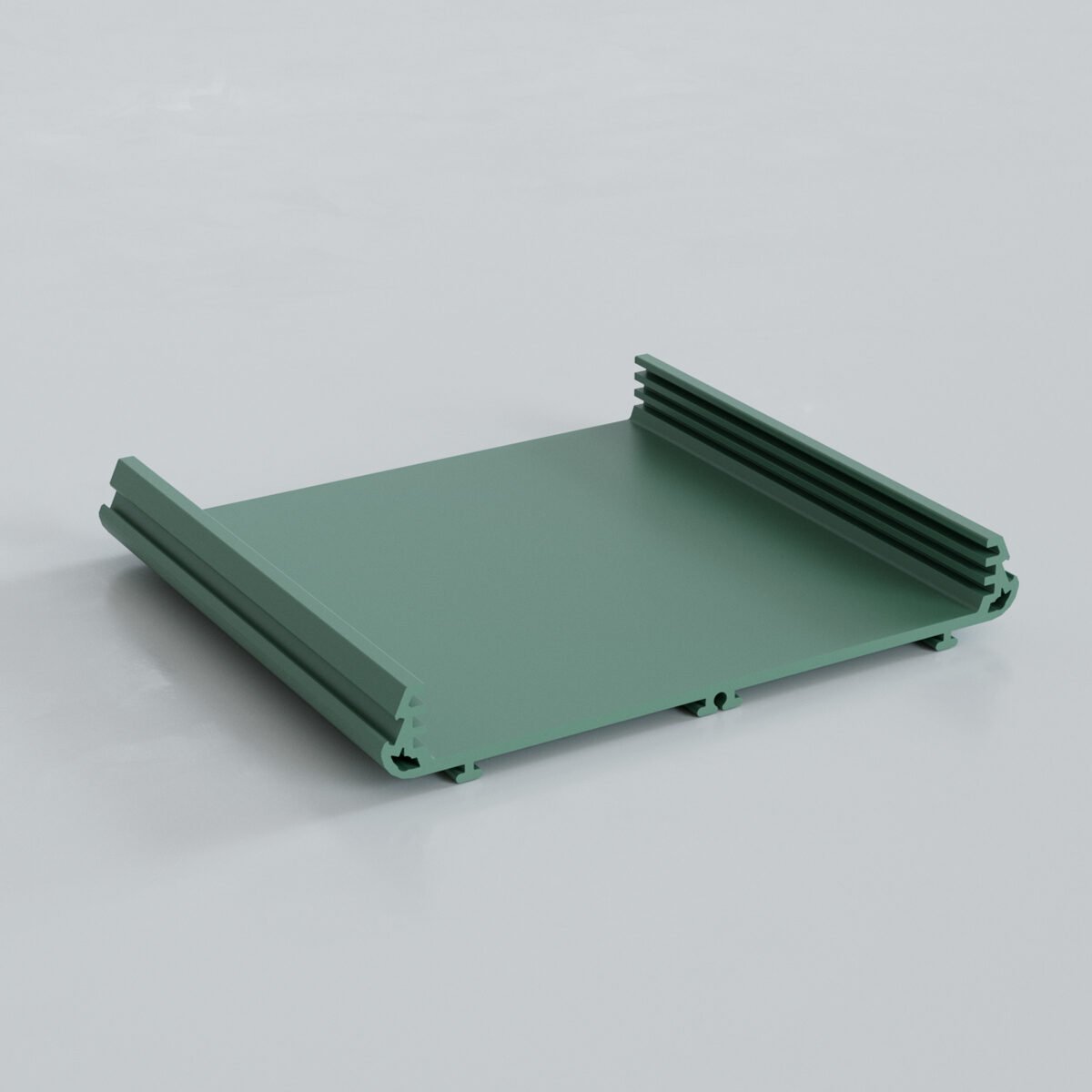

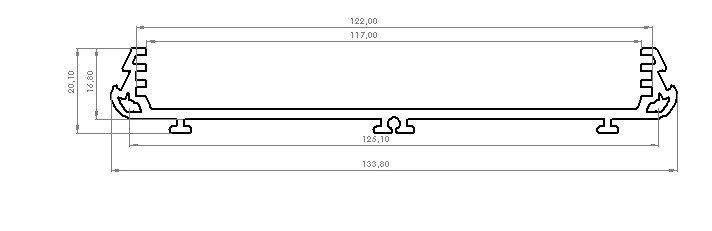

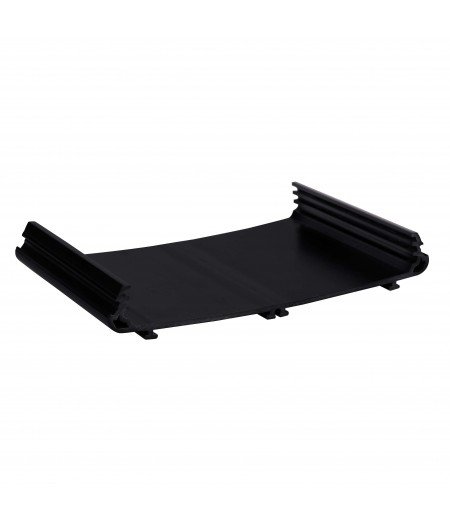

122mm DIN Rail PCB Holder-Profile 1m
PCB card slotSuitable PCB width: 122mmMounting type: 35mm DIN railProfile length: 1 meter
- DIN Rail PCB Holders are designed to mount printed circuit boards safely and firmly onto 35mm DIN rails.
- The durable holder profiles provide a stable grip, and the snap-on feet allow fast, tool-free installation.
- Simply provide your PCB dimensions, and we can manufacture a customized PCB holder perfectly tailored to your application.
Color options
Black
Stock color
Black
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Insulation material | Polyamide (PA6) |
| Flammability class per UL94 | V0 |
| Mounting type | 35mm DIN rail |
| Screw | Ø 3.05 deep groove plastic screw |
| Suitable PCB width | 122mm |
| Package quantity | 20 |
| Production code | KYS PP/122-1 |
| Order code | 53.300 |
| Customs tariff no. | 3908.10.00.00.11 |
| Country of Origin | Türkiye |
| File Name | Size | File Type |
|---|---|---|
| 122mm DIN Rail PCB Holder-Profile 1m.x_t | 204KB | X_T |
| 122mm DIN Rail PCB Holder-Profile 1m.STEP | 460KB | STP |
| 122mm DIN Rail PCB Holder-Profile 1m.pdf | 790KB | |
| 122mm DIN Rail PCB Holder-Profile 1m.pdf | 791KB | |
| 122mm DIN Rail PCB Holder-Profile 1m.SLDPRT | 227KB | SPT |
| No combined products available for this item. |
Please select the information you want in the document.
