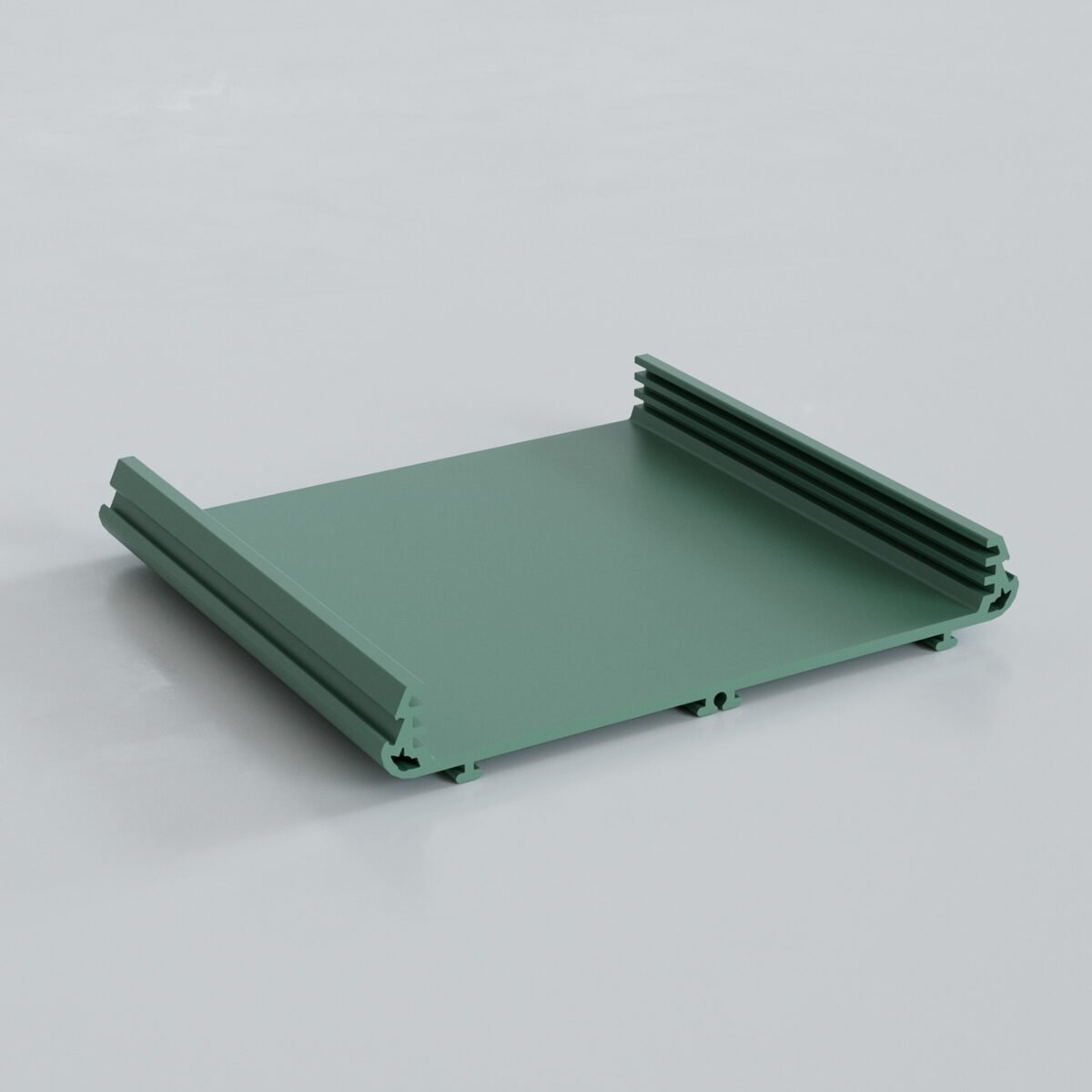

122mm DIN Rail PCB Holder-Profile 2m

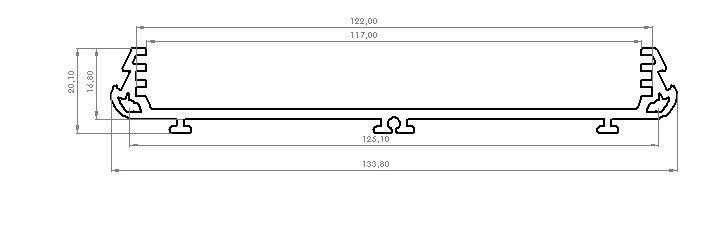

PCB card slotSuitable PCB width: 122mmMounting type: 35mm DIN railProfile length: 2 meters
Color options
Black
Stock color
Black
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Insulation material | Polyamide (PA6) |
| Flammability class per UL94 | V0 |
| Mounting type | 35mm DIN rail |
| Screw | Ø 3.05 deep groove plastic screw |
| Suitable PCB width | 122mm |
| Package quantity | 20 |
| Production code | KYS PP/122-2 |
| Order code | 53.350 |
| Customs tariff no. | 3908.10.00.00.11 |
| Country of Origin | Türkiye |
| File Name | Size | File Type |
|---|---|---|
| 122 mm electronic card slot PROFILE 2 M.x_t | 204KB | X_T |
| 122 mm electronic card slot PROFILE 2 M.STEP | 460KB | STP |
| 122 mm electronic card slot PROFILE 2 M.DXF | 60KB | DXF |
| 122mm_profil_2meter-TDS-EN.pdf | 789KB | |
| 122mm_profil_2meter-TDS-TR.pdf | 791KB |
| No combined products available for this item. |
