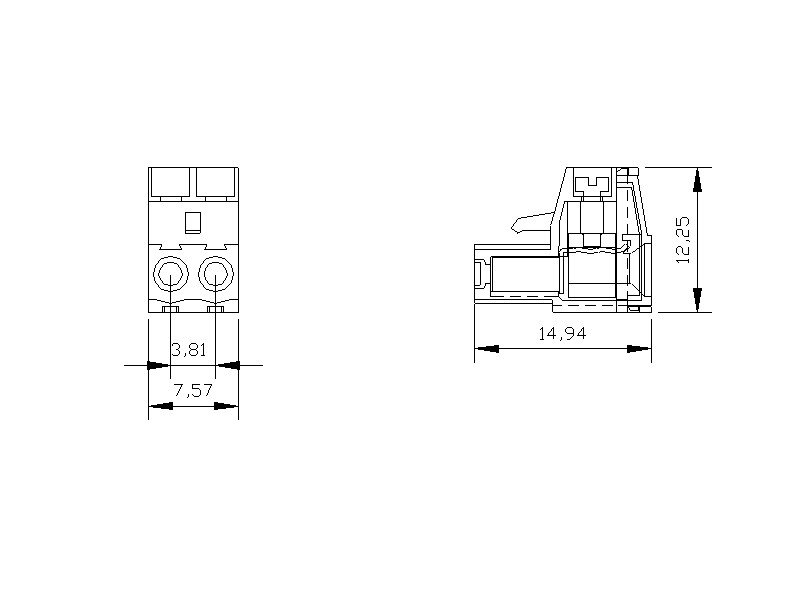

3.81mm Female Pluggable Terminal Block – 2 Pins
PCB terminal block with screw connection socket with elevator mechanism2 polesMax. conductor cross section: 1.5mm²-16 AWGPin pitch: 3.81mmRated voltage: 160VRated current: 8A
- Pluggable connectors offer three installation options: cable-to-cable connection, rail mounting, and surface mounting to suit diverse application needs.
- They can be easily fixed onto rails using mounting brackets
- It can be easily fixed to the surface with screws via the holes on the terminal block.
Color options
Blue
Green
Orange
Black
Gray
Red
Green
Orange
Black
Gray
Red
Stock color
Green
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES

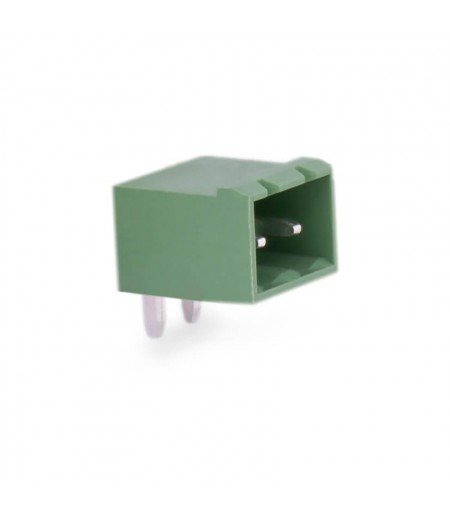

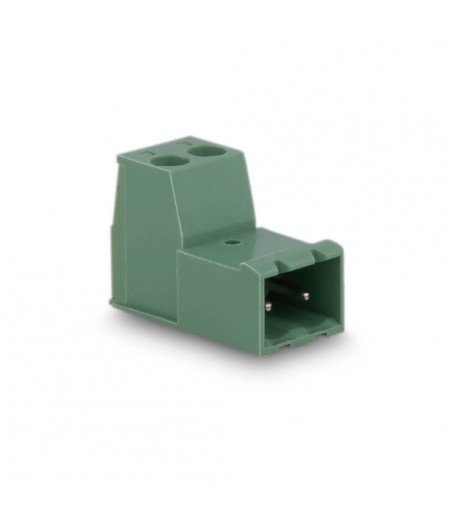

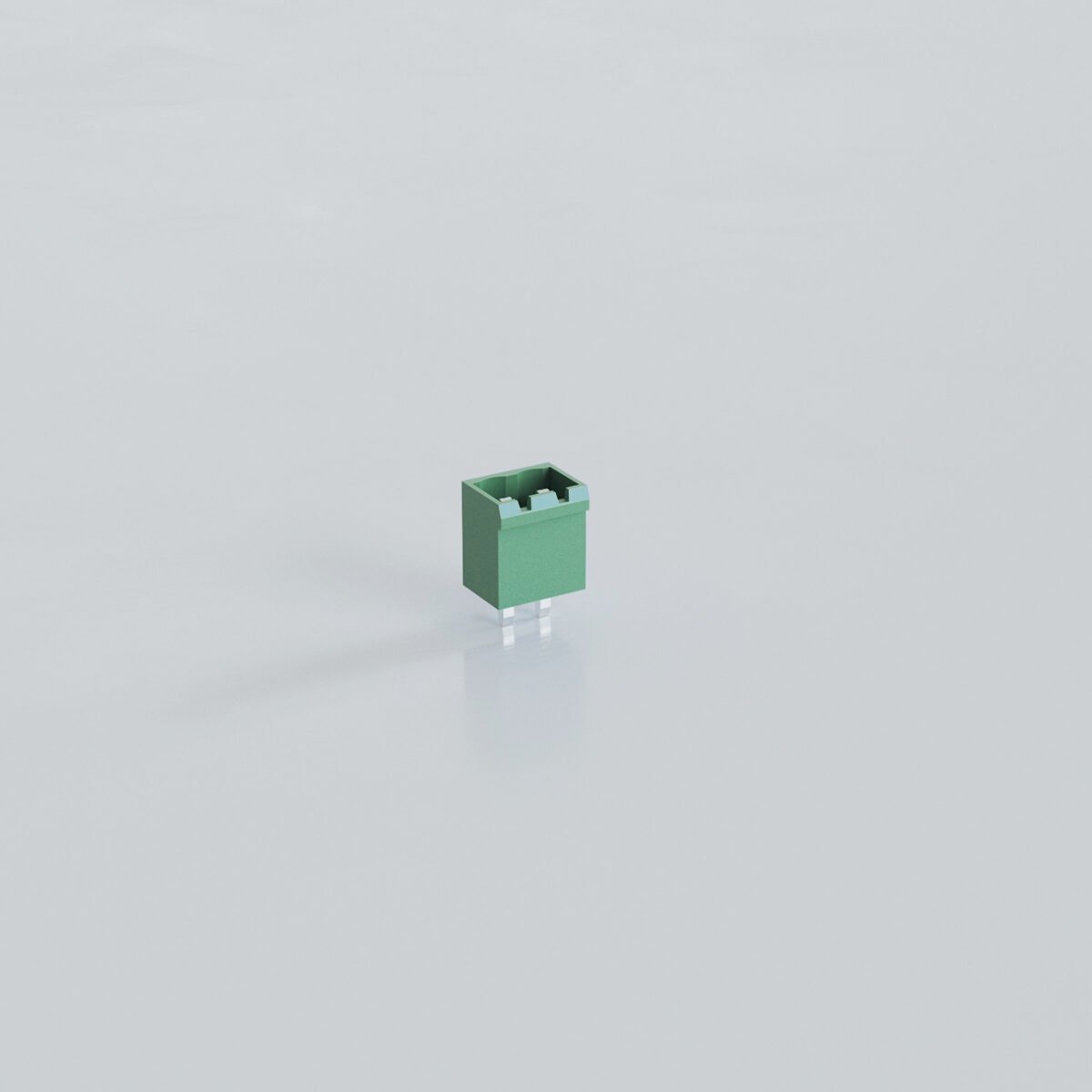

- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin pitch | 3.81mm |
| Pollution degree | 2 |
| Nominal voltage | 160V |
| Rated impulse voltage | 4 kV |
| Rated current | 8A |
| Connection directions | 90° - 180° |
| Cable stripping length | 7mm |
| Solid conductor | 0.25 … 1,5mm² / 23 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5mm² / 23 … 16AWG |
| Fine-stranded conductor with ferule | 0.25 … 1mm² / 24 … 18 AWG |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Screw | M2 |
| Recommended max. torque | 0.2Nm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
2-8 pins & 12-16 pins
| Package quantity | 200 |
| Production code | SBDK 3.81-D/2 |
| Order code | 10.011 - 11.011 - 12.011 - 13.011 - 14.011 - 15.011 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Türkiye |
| File Name | Size | File Type |
|---|---|---|
| 3-81-sbdk-disi2.xt | 68.7KB | X_T |
| 3-81-sbdk-disi2.dxf | 104.33KB | DXF |
| 3-81-sbdk-disi2.step | 183.82KB | STP |
Please select the information you want in the document.
