3.81mm Female Pluggable Terminal Block – 5 Pins
PCB terminal block with screw connection socket with elevator mechanism5 polesMax. conductor cross section: 1.5mm²-16 AWGPin spacing: 3.81mmRated voltage: 160VRated current: 8A
Color options
Blue
Green
Orange
Black
Gray
Red
Stock color
Green
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES

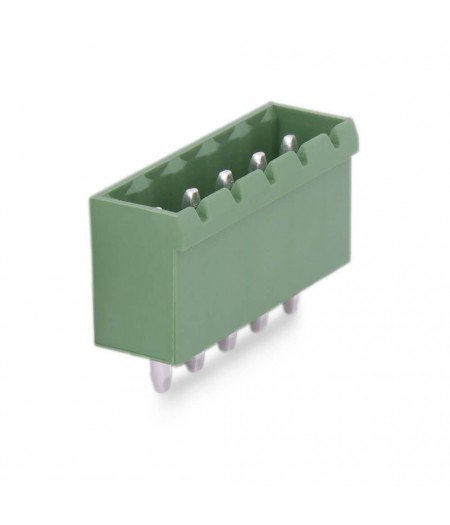

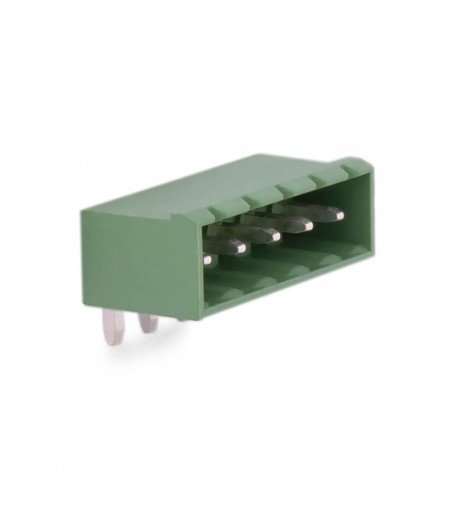

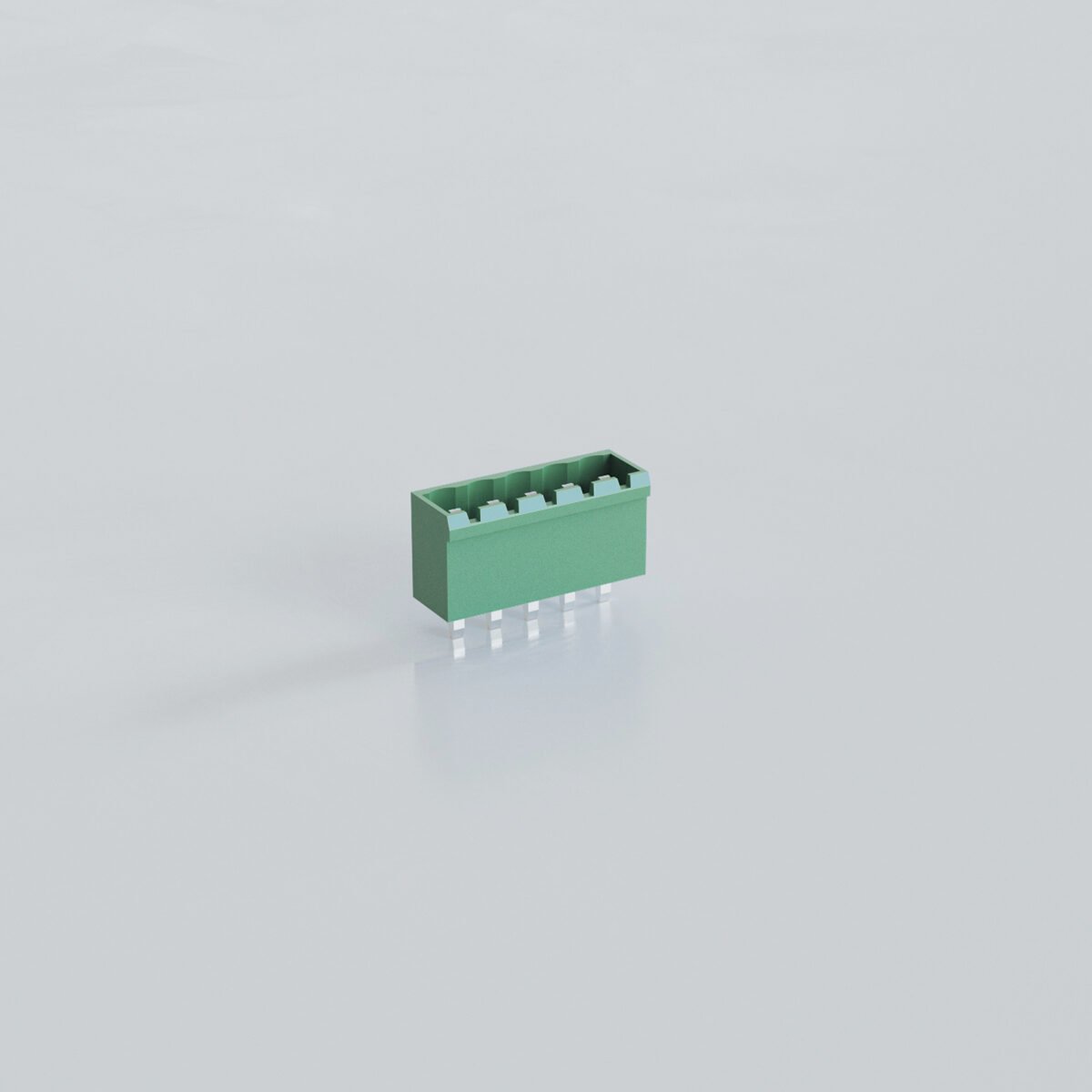

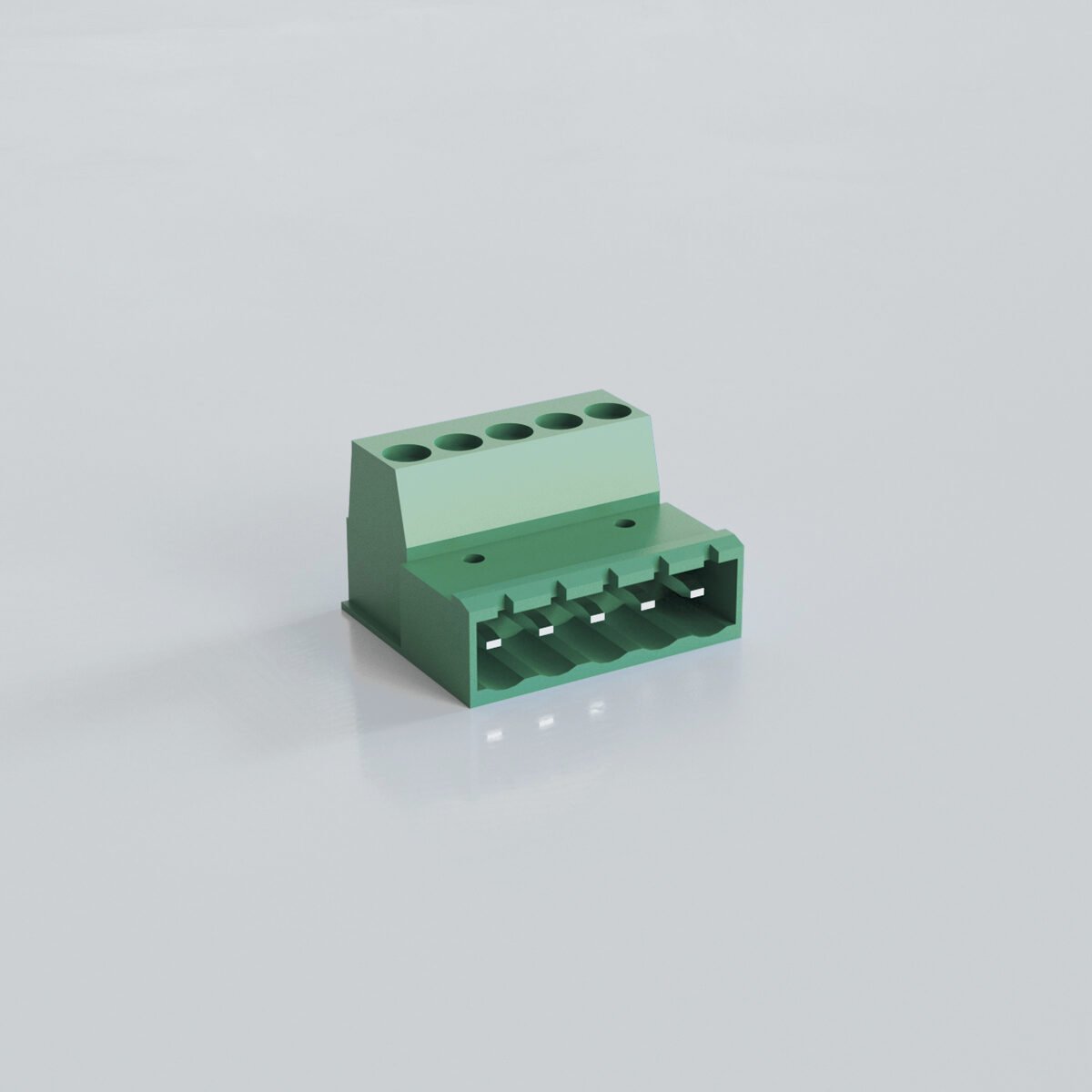

- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin range | 3.81mm |
| Pollution degree | 2 |
| Nominal voltage | 160V |
| Rated impulse voltage | 4 kV |
| Rated current | 8A |
| Connection directions | 90° - 180° |
| Cable stripping length | 7mm |
| Solid conductor | 0.25 … 1,5mm² / 23 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5mm² / 23 … 16AWG |
| Fine-stranded conductor with ferule | 0.25 … 1mm² / 24 … 18 AWG |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Screw | M2 |
| Recommended max. torque | 0.2Nm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
2-8 pins & 12-16 pins
| Package quantity | 200 |
| Production code | SBDK 3.81-D/5 |
| Order code | 10.017 - 11.017 - 12.017 - 13.017 - 14.017 - 15.017 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Turkey |

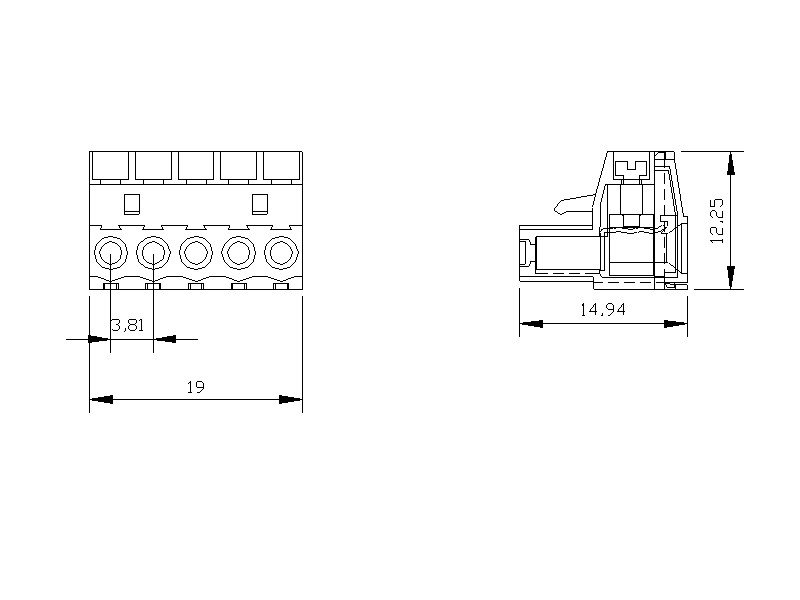

| File Name | Size | File Type |
|---|---|---|
| 3-81-sbdk-disi5.dxf | 177.98KB | DXF |
| 3-81-sbdk-disi5.xt | 153.42KB | X_T |
| 3-81-sbdk-disi5.step | 394.96KB | STP |
Please select the information you want in the document.
Benzer Ürünler

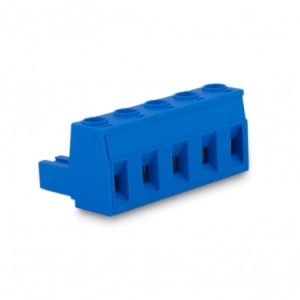

7.62mm Female Pluggable Terminal Block – 5 Pins
