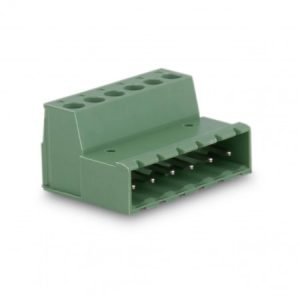

5.08mm Male Pluggable Connector - 6 Pins
5.08mm Male Pluggable Connector - 6 Pins - Image 2

5.08mm Male Pluggable Connector – 6 Pins

PCB terminal block with screw connection socket with elevator mechanism6 polesMax. conductor cross section: 2.5mm²-14 AWGPin spacing: 5.08mmRated voltage: 250VRated current: 16A

Color options
Blue Green Orange Black Gray Red
Stock color
Blue Green Orange

Price: Login

Stock color
Blue Green Orange
Karşılaştır
Add to List
Pin range5.08mm
Pollution degree2
Nominal voltage250V
Rated impulse voltage4 kV
Rated current16A
Connection directions90° - 180°
Cable stripping length7mm
Solid conductor0.25 … 2.5mm² / 23 … 14 AWG
Fine-stranded conductor0.25 … 2.5mm² / 23 … 14 AWG
Fine-stranded conductor with ferule0.25 … 1,5mm² / 23 … 16 AWG
Material groupIIIa
Insulation materialPolyamide (PA6)
Flammability class per UL 94V0
Pin materialBrass
Pin platingSilver
ScrewM2.5
Recommended max. torque0.4Nm
Operating temperature-40 … +100 °C / -40…+ 212 °F

2-12 pins

Package quantity100
Production codeSKBK 5.08-KB/6
Order code10.606 - 11.606 - 12.606 - 13.606 - 14.606 - 15.606
Customs tariff no.8536.90.10.00.00
Country of OriginTurkey
File NameSizeFile Type
5-08-skbk-cable-joiner-6.xt213.66KBX_T
5-08-skbk-cable-joiner-6.step503.48KBSTP
5-08-skbk-cable-joiner-6.dxf325.46KBDXF
