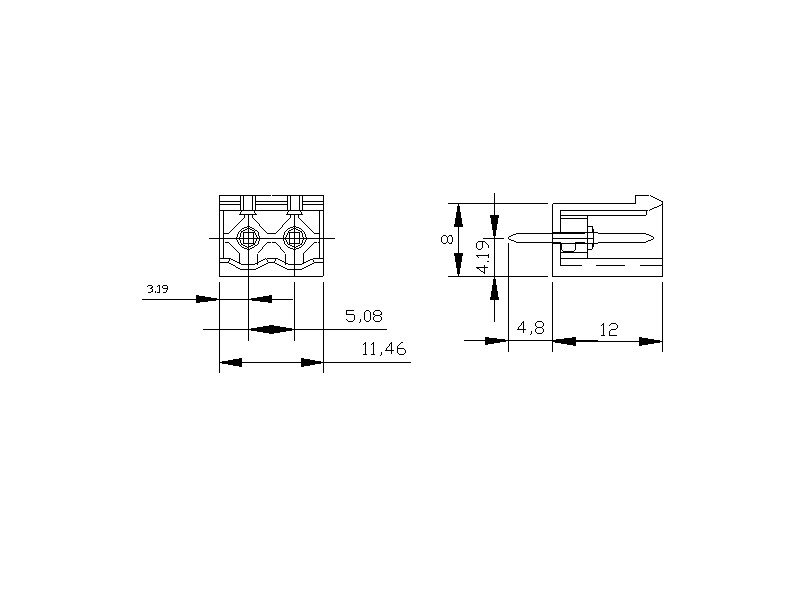

5.08mm Male Pluggable Terminal Block 180° (Closed Type) – 2 Pins
PCB terminal block with screw connection socket with elevator mechanism2 polesMax. conductor cross section: 2.5mm²-14 AWGPin spacing: 5.08mmRated voltage: 250VRated current: 16A
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin range | 5.08mm |
| Pollution degree | 2 |
| Nominal voltage | 250V |
| Rated impulse voltage | 4 kV |
| Rated current | 16A |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Solder pin length | 4.8mm |
| Solder pin dimensions | 1x1mm |
| Drilled card hole diameter with tolerance | 1.55mm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
2-25 pins
| Package quantity | 200 |
| Production code | SBDK 5.08-E2/2 |
| Order code | 10.452 - 11.452 - 12.452 - 13.452 - 14.452 - 15.452 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Turkey |
| File Name | Size | File Type |
|---|---|---|
| 5-08-sbdk-erkek-180-kapali-2.dxf | 151.54KB | DXF |
| 5-08-sbdk-erkek-180-kapali-2.step | 267.37KB | STP |
| 5-08-sbdk-erkek-180-kapali-2.xt | 117.05KB | X_T |
Please select the information you want in the document.
Benzer Ürünler

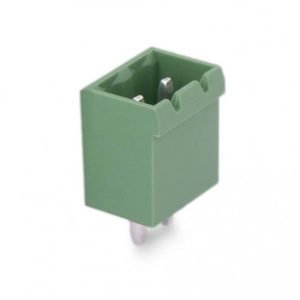

3.81mm Male Pluggable Terminal Block 180° – 2 Pins
