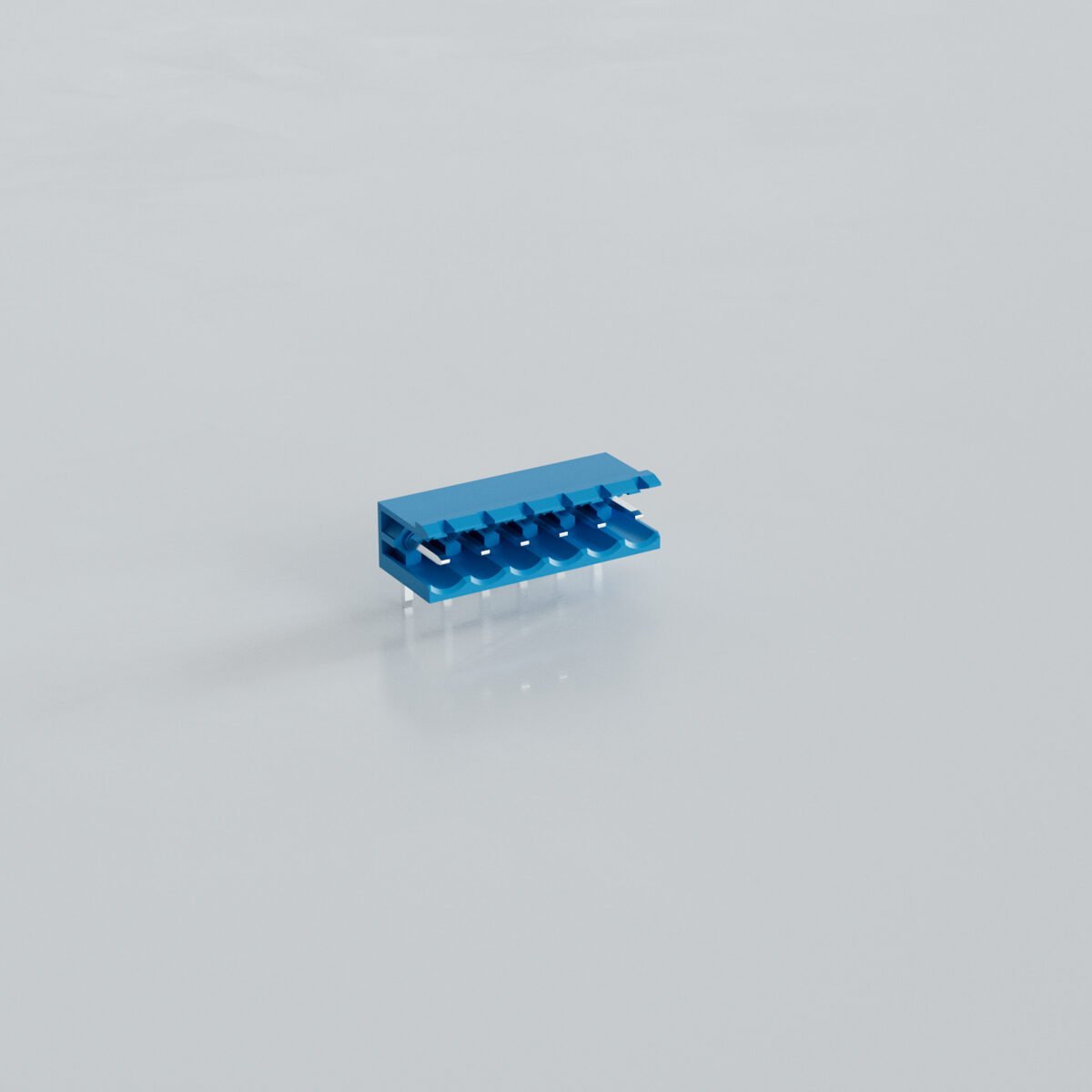

5.08mm Male Pluggable Terminal Block 90° (Open Type) – 6 Pins
PCB terminal block with screw connection socket with elevator mechanism6 polesMax. conductor cross section: 2.5mm²-14 AWGPin pitch: 5.08mmRated voltage: 250VRated current: 16A
- Pluggable design significantly speeds up your wiring and saves valuable assembly time.
- 90° and 180° connection angles adapt easily to any layout.
- Use different colors to create clear, easy-to-identify connections at a glance.
- Choose from open-side, closed-side, or multi-level models to fit your specific space requirements.
Color options
Blue
Green
Orange
Black
Gray
Red
Green
Orange
Black
Gray
Red
Stock color
Blue
Green
Orange
Green
Orange
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin pitch | 5.08mm |
| Pollution degree | 2 |
| Nominal voltage | 250V |
| Rated impulse voltage | 4 kV |
| Rated current | 16A |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Solder pin length | 4.8mm |
| Solder pin dimensions | 1x1mm |
| Drilled card hole diameter with tolerance | 1.55mm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
2-25 pins
| Package quantity | 100 |
| Production code | SBDK 5.08-E1A/6 |
| Order code | 10.306 - 11.306 - 12.306 - 13.306 - 14.306 - 15.306 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Türkiye |
| File Name | Size | File Type |
|---|---|---|
| 5.08mm Male Pluggable Terminal Block 90° (Open Type) - 6 Pins.dxf | 307.61KB | DXF |
| 5.08mm Male Pluggable Terminal Block 90° (Open Type) - 6 Pins.STEP | 713.47KB | STP |
| 5.08mm Male Pluggable Terminal Block 90° (Open Type) - 6 Pins.xt | 320.58KB | X_T |
Please select the information you want in the document.
