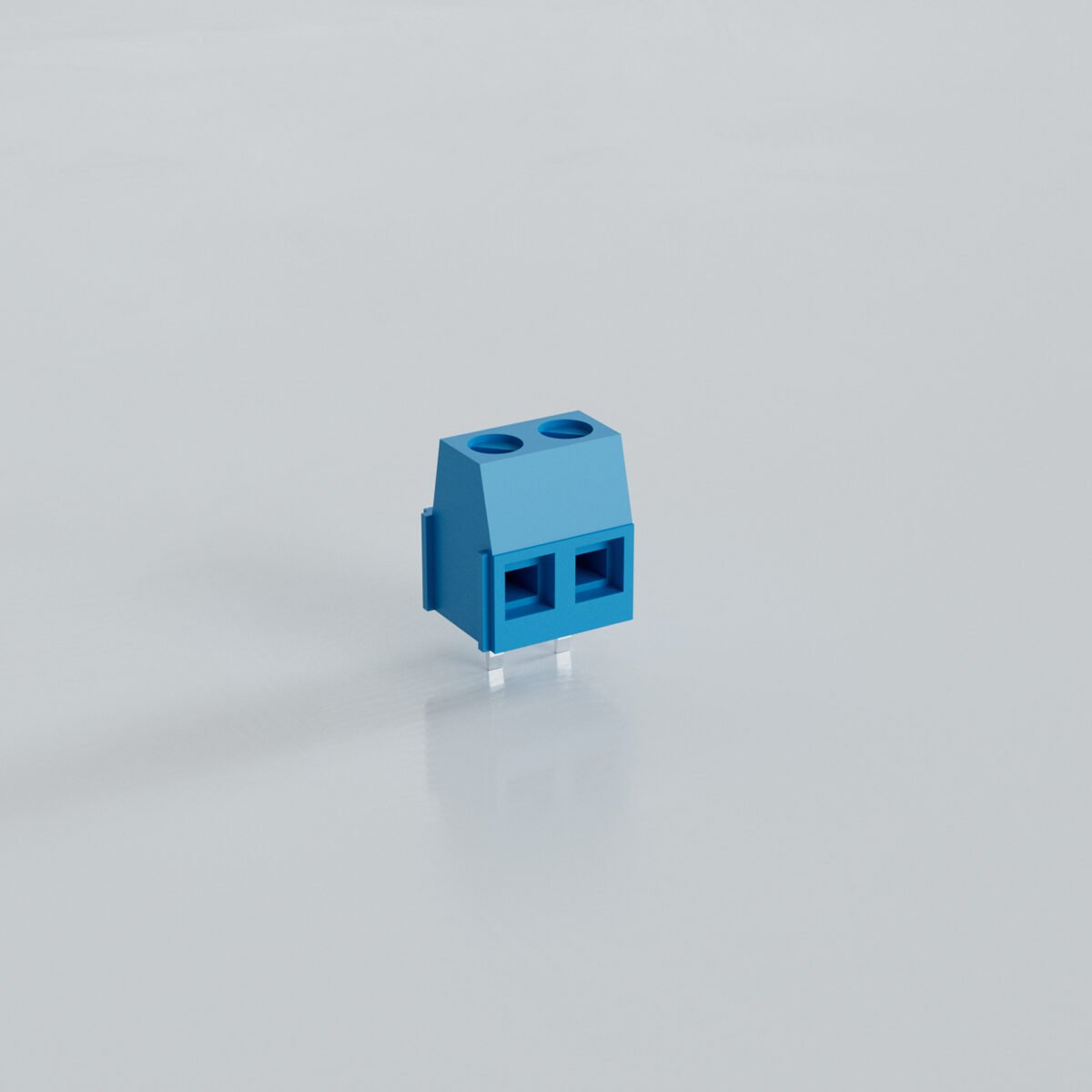

5.08mm Modular PCB Terminal Block NO:0 – 2 Pins
Modular PCB terminal block with screw connection with elevator mechanism2 polesMax. conductor cross section: 1.5mm²-16 AWGPin pitch: 5.08mmRated voltage: 250VRated current: 10A
- Modular terminals can be multiplied up to the desired number of poles by interlocking.
Color options
Blue
Green
Orange
Black
Gray
Red
Green
Orange
Black
Gray
Red
Stock color
Blue
Green
Orange
Green
Orange
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin pitch | 5.08mm |
| Pollution degree | 2 |
| Nominal voltage | 250V |
| Rated impulse voltage | 4 kV |
| Rated current | 10A |
| Connection directions | 90° |
| Cable stripping length | 7mm |
| Solid conductor | 0.25 … 1,5mm² / 23 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1,5mm² / 23 … 16 AWG |
| Fine-stranded conductor with ferule | 0.25 … 1mm² / 23 … 18 AWG |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Pin dimensions | 0.6x1mm |
| Drilled pin hole diameter with tolerance | 1.3mm |
| Screw | M2.5 |
| Recommended max. torque | 0.4Nm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
2-3 pins
| Package quantity | 500 |
| Production code | MBDK 5.08-0/2 |
| Order code | 20.100 - 21.100 - 22.100 - 23.100 - 24.100 - 25.100 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Türkiye |
| File Name | Size | File Type |
|---|---|---|
| 5-08-mbdk-no-0-2.step | 162KB | STP |
| 5-08-mbdk-no-0-2.xt | 69.84KB | X_T |
| 5-08-mbdk-no-0-2.dxf | 160.07KB | DXF |
