5.08x7.62mm Dik Yaylı Klemens - 12 Pim
5.08x7.62mm Vertical Spring Clamp PCB Terminal Block - 12 Pins - Image 2

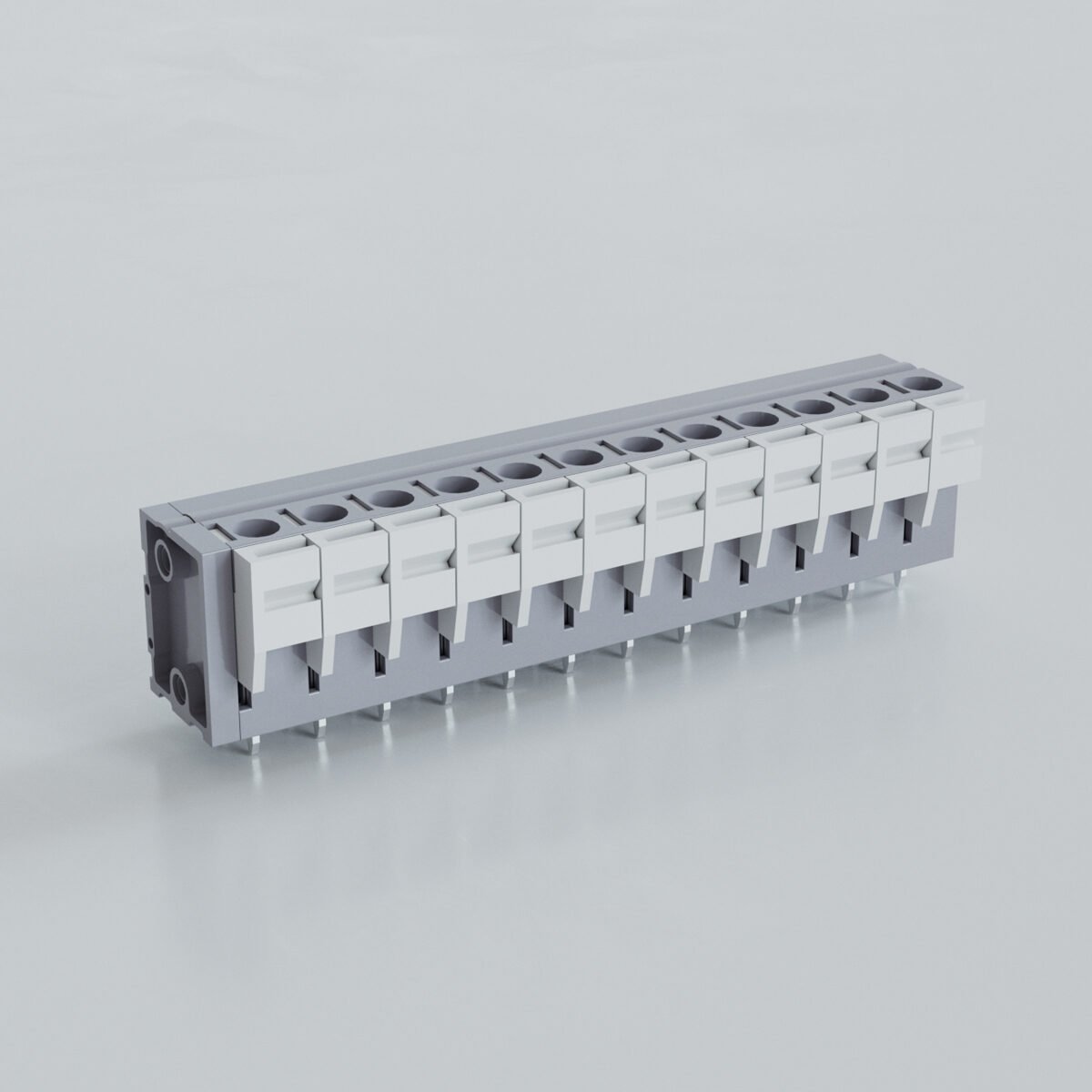

5.08×7.62mm Vertical Spring Clamp PCB Terminal Block – 12 Pins

Spring-loaded modular PCB terminal block12 polesMax. conductor cross-section: 1.5mm²-16AWGPin pitch: 5.08×7.62mmRated voltage: 250VRated current: 10A

  • Modular terminals can be multiplied up to the desired number of poles by interlocking. Spring structure provides practical use and time saving.
Color options

Gray
Stock color

Gray

Price: Login

Stock color
Gray
Karşılaştır
Add to List
Pin pitch5.08x7.62mm
Pollution degree2
Nominal voltage250V
Rated impulse voltage4 kV
Rated current10A
Connection directions90°
Cable stripping length7mm
Solid conductor0.25 … 1,5mm² / 23 … 16 AWG
Fine-stranded conductor0.25 … 1,5mm² / 23 … 16 AWG
Fine-stranded conductor with ferule0.25 … 1mm² /23 … 18 AWG
Material groupIIIa
Insulation materialPolyamide (PA6)
Flammability class per UL 94V0
Pin materialBrass
Pin platingSilver
Pin dimensions0.5x1mm
Drilled pin hole diameter with tolerance1.25mm
ScrewM3
Recommended max. torque0.25Nm
Operating temperature-40 … +100 °C / -40…+ 212 °F

2-12 pins

Package quantity50
Production codeVBDK-D/12
Order code34.520
Customs tariff no.8536.90.10.00.00
Country of OriginTürkiye
File NameSizeFile Type
vbdk-12.STEP.step836.5KBSTP
vbdk-12.dxf783.33KBDXF
vbdk-12.xt370.56KBX_T
