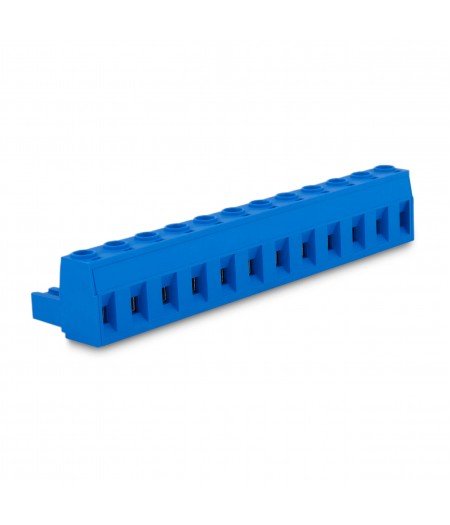

7.62mm Female Pluggable Terminal Block – 12 Pins
PCB terminal block with screw connection socket with elevator mechanism12 polesMax. conductor cross section: 2.5mm²-14 AWGPin spacing: 7.62mmRated voltage: 400VRated current: 16A
Color options
Mavi
Yeşil
Turuncu
Siyah
Gri
Kırmızı
Stock color
Blue
Green
Orange
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin pitch | 7.62mm |
| Pollution degree | 2 |
| Nominal voltage | 400V |
| Rated impulse voltage | 4 kV |
| Rated current | 16A |
| Connection directions | 90° - 180° |
| Cable stripping length | 7mm |
| Solid conductor | 0.25 … 2.5mm² / 23 … 14 AWG |
| Fine-stranded conductor | 0.25 … 2.5mm² / 23 … 14 AWG |
| Fine-stranded conductor with ferule | 0.25 … 1,5mm² / 23 … 16 AWG |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Screw | M2.5 |
| Recommended max. torque | 0.4Nm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
2-12 pins
| Package quantity | 50 |
| Production code | SBDK 7.62-D/12 |
| Order code | 10.712 - 11.712 - 12.712 - 13.712 - 14.712 - 15.712 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Türkiye |
| File Name | Size | File Type |
|---|---|---|
| 7-62-sbdk-disi-12.dxf | 368.73KB | DXF |
| 7-62-sbdk-disi-12.xt | 398.77KB | X_T |
| 7-62-sbdk-disi-12.step | 1.01MB | STP |
| SBDK 7.62-E1/12 |  7.62mm Soketli Erkek Klemens 90° - 12 Pim | ||
| SBDK 7.62-E2/12 |  7.62mm Male Pluggable Terminal Block 180° - 12 Pins |
