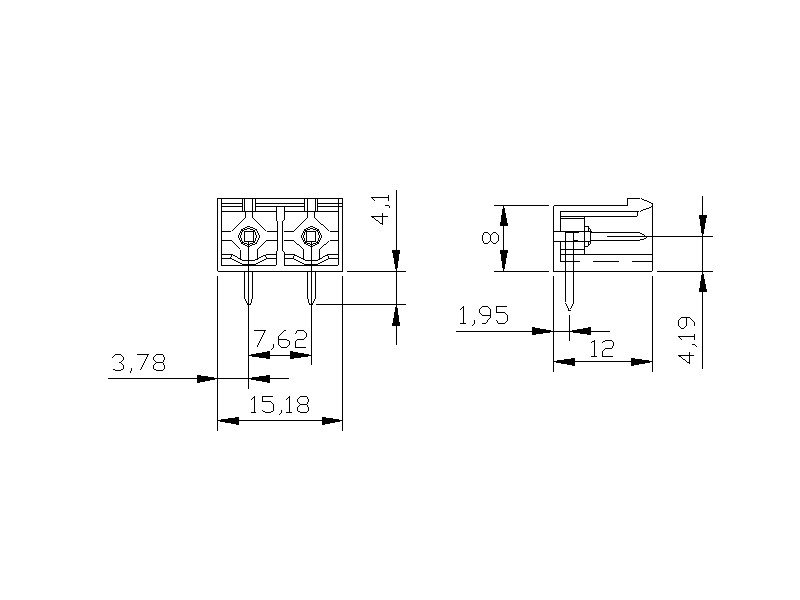

7.62mm Male Pluggable Terminal Block 90° – 2 Pins
PCB terminal block with screw connection socket with elevator mechanism2 polesMax. conductor cross section: 2.5mm²-14 AWGPin spacing: 7.62mmRated voltage: 400VRated current: 16A
Color options
Blue
Green
Orange
Black
Gray
Red
Stock color
Blue
Green
Orange
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin range | 7.62mm |
| Pollution degree | 2 |
| Nominal voltage | 400V |
| Rated impulse voltage | 4 kV |
| Rated current | 16A |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Solder pin length | 4.1mm |
| Solder pin dimensions | 1x1mm |
| Drilled card hole diameter with tolerance | 1.55mm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
2-12 pins
| Package quantity | 200 |
| Production code | SBDK 7.62-E1/2 |
| Order code | 10.802 - 11.802 - 12.802 - 13.802 - 14.802 - 15.802 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Turkey |
| File Name | Size | File Type |
|---|---|---|
| 7-62-sbdk-erkek-90-2.dxf | 207.78KB | DXF |
| 7-62-sbdk-erkek-90-2.xt | 146.35KB | X_T |
| 7-62-sbdk-erkek-90-2.step | 336.89KB | STP |
Please select the information you want in the document.
