| Pin range | 10.16mm |
| Pollution degree | 2 |
| Nominal voltage | 690V |
| Rated impulse voltage | 6kV |
| Rated current | 57 A |
| Connection directions | 90° |
| Cable stripping length | 7mm |
| Solid conductor | 0.25 … 10mm² / 23 … 8 AWG |
| Fine-stranded conductor | 0.25 … 10mm² / 23 … 8 AWG |
| Fine-stranded conductor with ferule | 0.25 … 6mm² /23 … 10 AWG |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Pin dimensions | 1x1mm |
| Drilled pin hole diameter with tolerance | 1.6mm |
| Screw | M4 |
| Recommended max. torque | 1.2Nm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
| Package quantity | 100 |

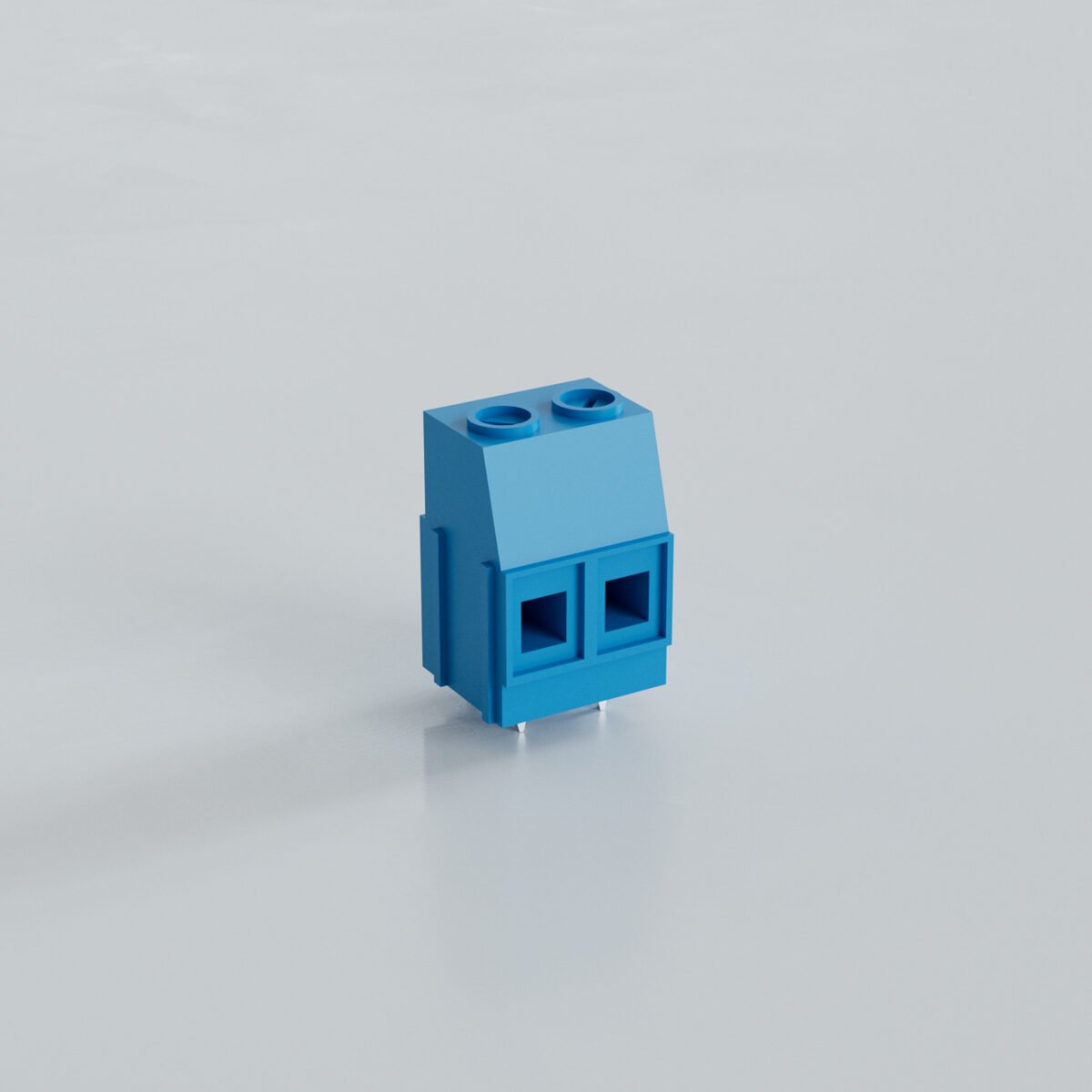

| Production code | MBDK 10.16-2 |
| Order code | 20.590 - 21.590 - 22.590 - 23.590 - 24,590 - 25.590 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Turkey |
