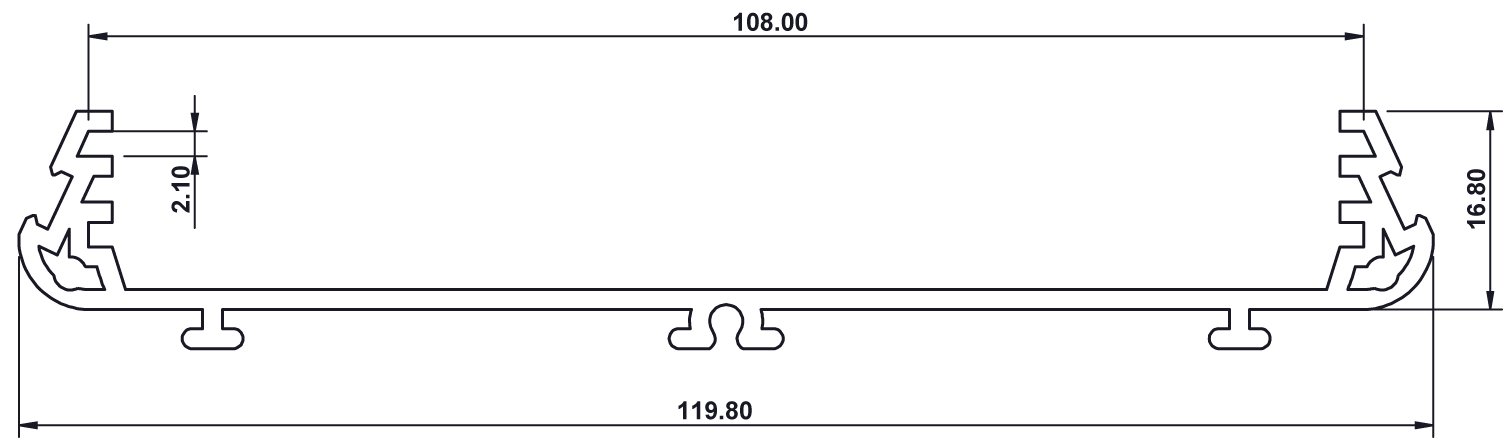

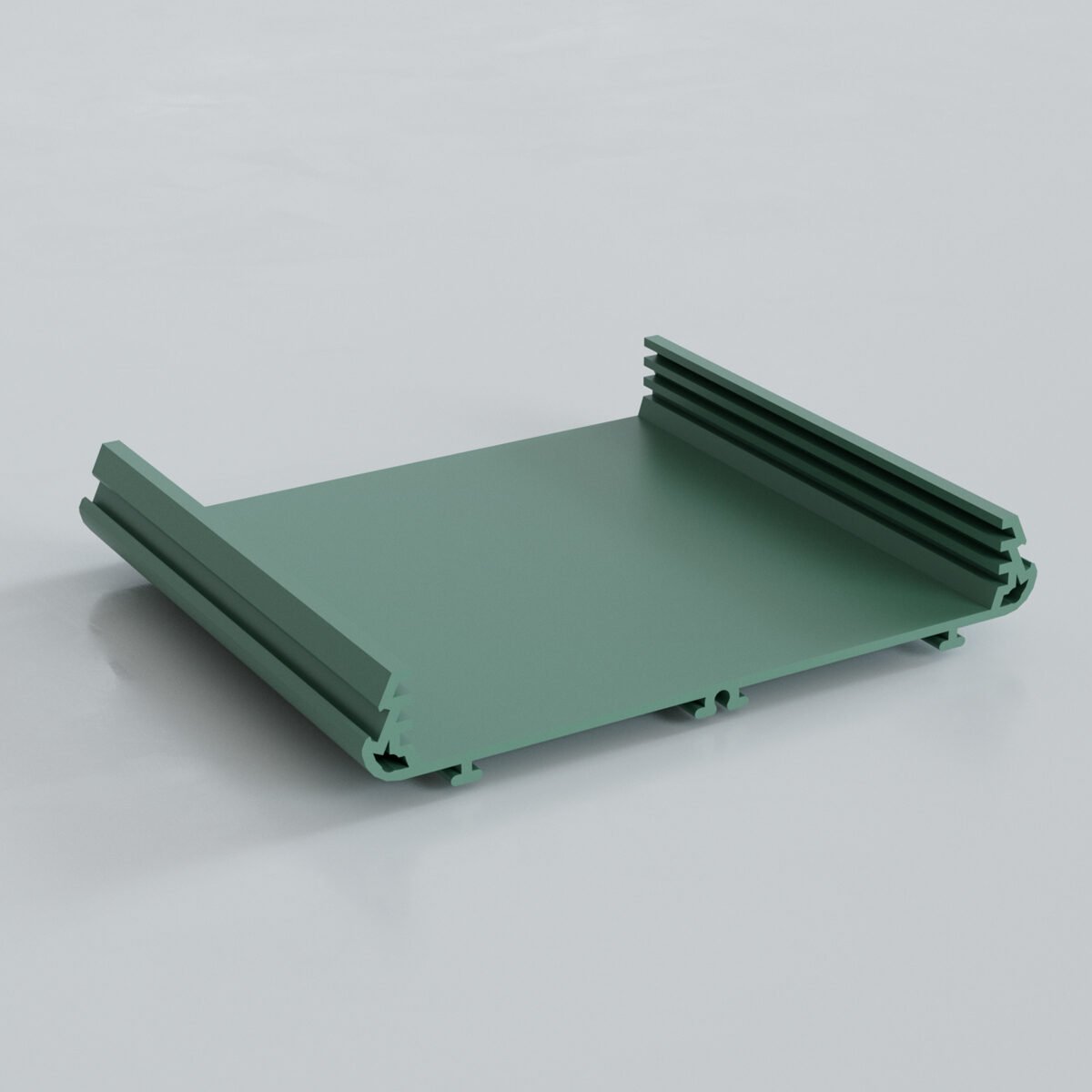

108mm DIN Rail PCB Holder-Profile 1m
PCB card slotSuitable PCB width: 108mmMounting type: 35mm DIN railProfile length: 1 meter
Color options
Green
Stock color
Green
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Insulation material | Polyamide (PA6) |
| Flammability class per UL94 | V0 |
| Mounting type | 35mm DIN rail |
| Screw | Ø 3.05 deep groove plastic screw |
| Suitable PCB width | 108mm |
| Package quantity | 20 |
| Production code | KYS PP/108-1 |
| Order code | 51.750 |
| Customs tariff no. | 3908.10.00.00.11 |
| Country of Origin | Turkey |
| File Name | Size | File Type |
|---|---|---|
| 108-card-slot-profile-1m.xt | 115.5KB | X_T |
| 108-card-slot-profile-1m.step | 251.05KB | STP |
| 108-card-slot-profile-1m.dxf | 104.88KB | DXF |
| No combined products available for this item. |
