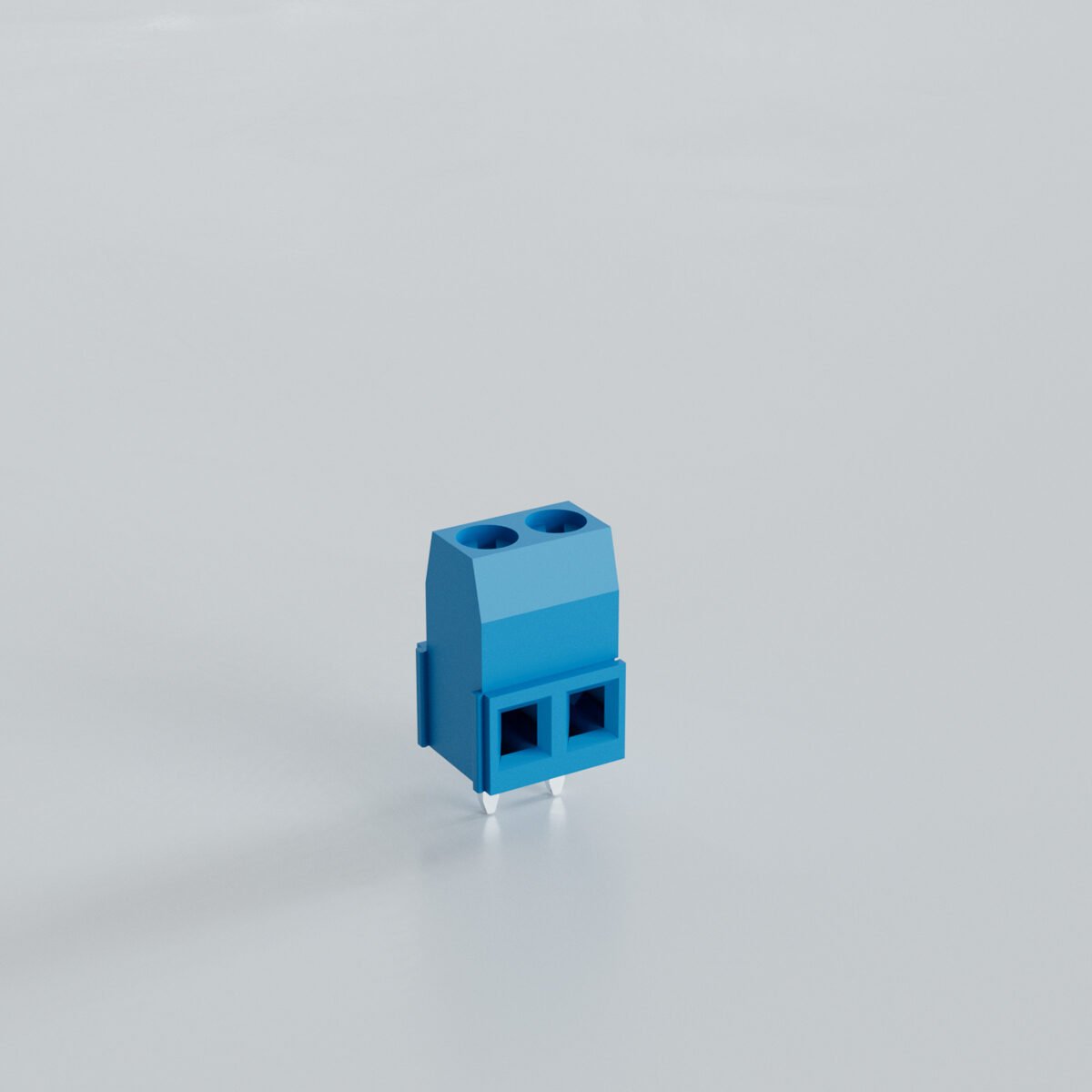

3.81mm Modular PCB Terminal Block – 2 Pins
Modular PCB terminal block with screw connection with elevator mechanism2 polesMax. Conductor cross section: 1.5mm²-16 AWGPin spacing: 3.81mmRated voltage: 160VRated current: 8A
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin pitch | 3.81mm |
| Pollution degree | 2 |
| Nominal voltage | 160 V |
| Rated impulse voltage | 4 kV |
| Rated current | 8A |
| Connection directions | 90° |
| Cable stripping length | 7mm |
| Solid conductor | 0.25 … 1.5mm² / 23 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5mm² / 23 … 16 AWG |
| Fine-stranded conductor with ferule | 0.25 … 1mm² / 23 … 18 AWG |
| Material group | IIIa |
| Insulation material | Poliamid (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Pin dimensions | 0.9x0.6mm |
| Drilled pin hole diameter with tolerance | 1.15mm |
| Screw | M2 |
| Recommended max. torque | 0.2Nm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
| Package quantity | 500 |
| Production code | MBDK 3.81/2 |
| Order code | 24,432 - 25.432 - 25.432 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Türkiye |
| File Name | Size | File Type |
|---|---|---|
| 3-81-mbdk-2.step | 162KB | STP |
| 3-81-mbdk-2.xt | 69.84KB | X_T |
| 3-81-mbdk-2.dxf | 160.07KB | DXF |
| No combined products available for this item. |
