9.52×7.62mm Modular PCB Terminal Block – 3 Pins

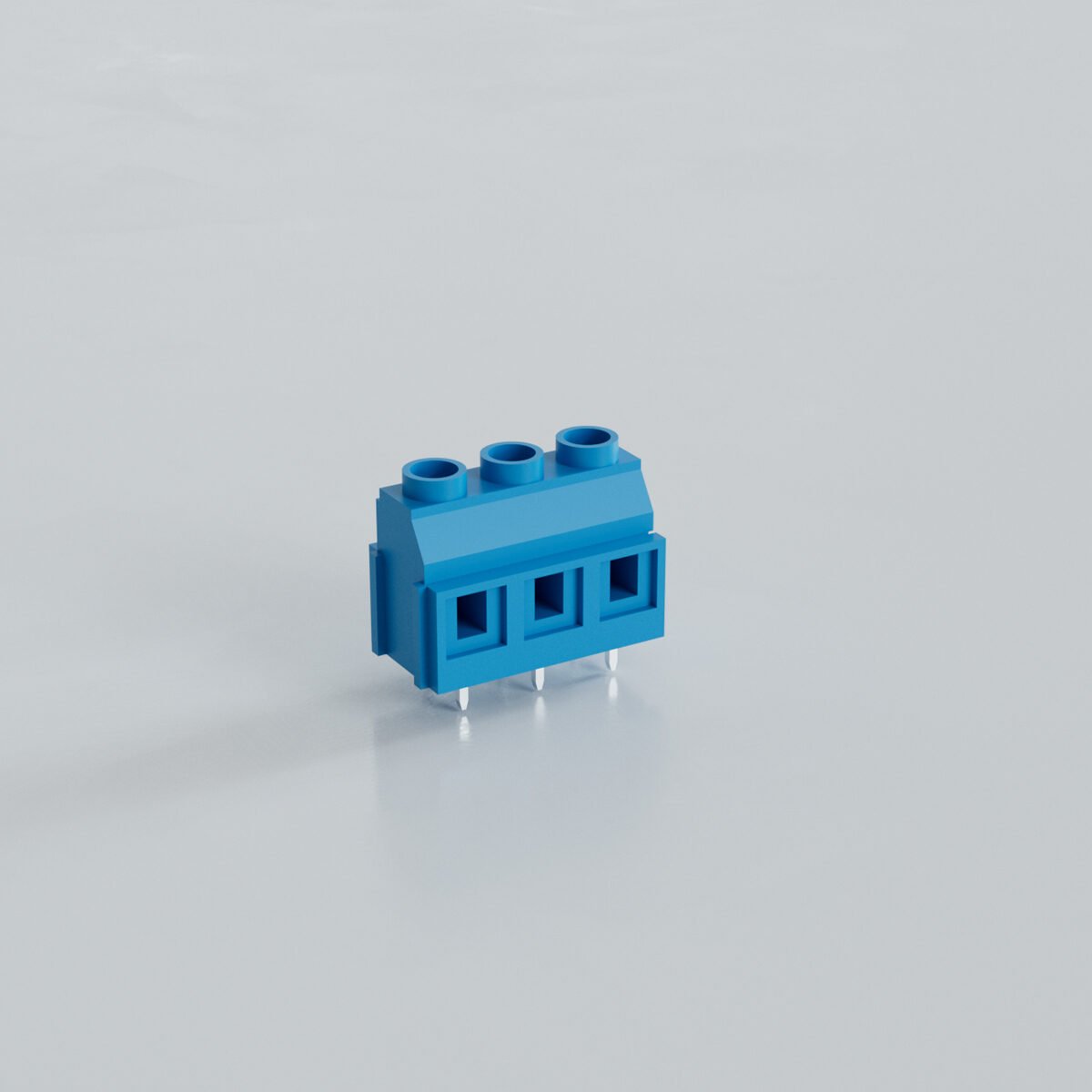

Modular PCB terminal block with screw connection with elevator mechanism3 polesMax. conductor cross section: 6mm²-10 AWGPin pitch: 9,52×7,62mmRated voltage: 600VRated current: 41A
- TECHNICAL SPECIFICATIONS
- COMMERCIAL DATA
- DOWNLOADS
- CERTIFICATES
- COMBINED PRODUCTS
- DATA SHEET
- Taksit Seçenekleri
| Pin range | 9.52x7.62mm |
| Pollution degree | 2 |
| Nominal voltage | 600V |
| Rated impulse voltage | 6kV |
| Rated current | 41 A |
| Connection directions | 90° |
| Cable stripping length | 7mm |
| Solid conductor | 0.25 … 6mm² / 23 … 10 AWG |
| Fine-stranded conductor | 0.25 … 6mm² / 23 … 10 AWG |
| Fine-stranded conductor with ferule | 0.25 … 4mm² /23 … 12 AWG |
| Material group | IIIa |
| Insulation material | Polyamide (PA6) |
| Flammability class per UL 94 | V0 |
| Pin material | Brass |
| Pin plating | Silver |
| Pin dimensions | 1x1mm |
| Drilled pin hole diameter with tolerance | 1.6mm |
| Screw | M3.5 |
| Recommended max. torque | 0.8Nm |
| Operating temperature | -40 … +100 °C / -40…+ 212 °F |
1-4 pins
| Package quantity | 50 |
| Production code | MBDK 9.52-3 |
| Order code | 20.550 - 21.550 - 22.550 - 23.550 - 24.550 - 25.550 |
| Customs tariff no. | 8536.90.10.00.00 |
| Country of Origin | Turkey |
